16' Hay Elevator Base Unit, Bale Conveyor

Freight Shipping
$1,499.99
The 16' hay elevator base unit comes in two easy-to-connect 8' sections and can be expanded with additional sections. A 1/2-horsepower motor is recommended for the base unit, while longer systems may require additional power.

Store Pickup

Drive-thru pickup at our Delaware, Ohio store

Freight shipping from ~$200

The more you buy, the more economical per mat

Key Features

Two 8-Foot Sections

Ships and stores in two manageable 8-foot pieces that connect quickly for a full 16-foot working length.

11'3" Maximum Vertical Lift

Lifts bales up to 11 feet 3 inches at a 45-degree working angle, clearing most standard barn loft heights.

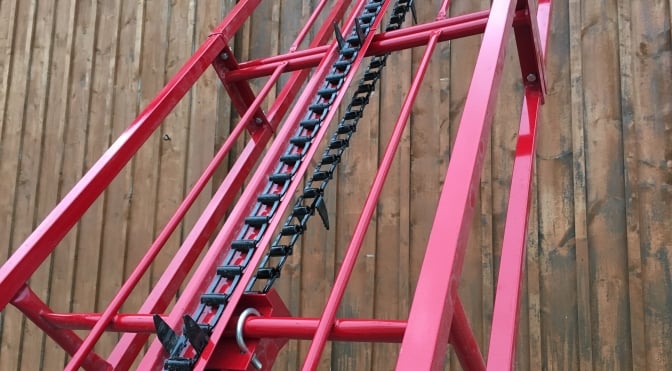

Double Formed Bend Track

Chain track design adds rigidity and prevents sagging under repeated bale loads across a full baling season.

Heavy Angle Iron Joints

Hardened bolts and angle iron connecting joints resist stretching and keep sections aligned under load.

Horizontal Use Option

Moves bales laterally at ground level as well as lifting them, adding flexibility for barns with varying layouts.

Extendable to 40 Feet

Add 4-foot or 8-foot sections at any point to reach taller loft heights, up to 40 feet total length.

Product Description

The 16-foot Hay Elevator from Cashmans takes the hard work out of stacking bales by moving them from the ground or a wagon up into a loft or storage area. It ships as two 8-foot sections that connect quickly, and this bale conveyor lifts bales up to 11 feet 3 inches at a 45-degree angle. The chain track uses a double formed bend design that keeps this hay bale elevator rigid and prevents sagging under full bale loads. Heavy angle iron joints and hardened bolts hold the sections together so this hay loft elevator does not stretch or shift during heavy use.

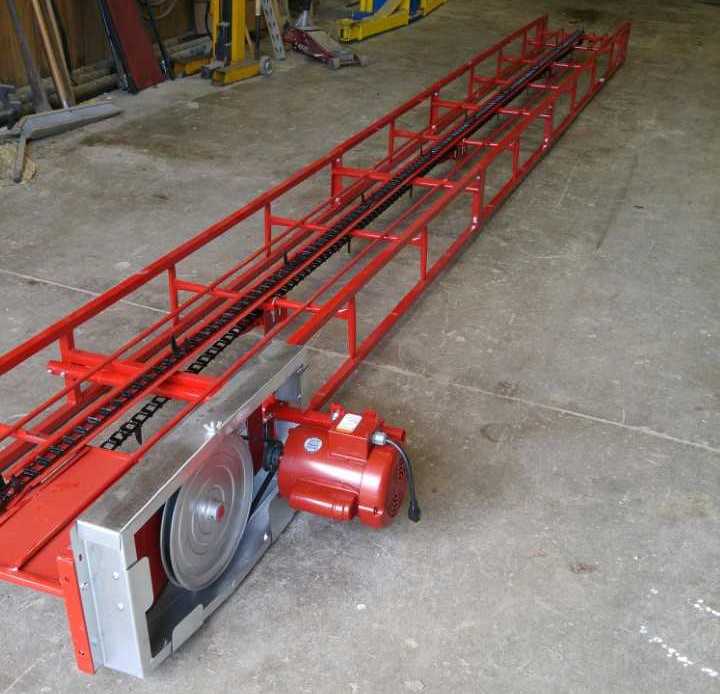

A half-horsepower motor powers the hay elevator base unit and is sold separately. Add 4-foot or 8-foot extension sections at any point to extend this farm hay elevator up to 40 feet total for taller barn lofts. At 24 feet or longer, upgrade to a 3/4-horsepower motor, and a transport kit is available to move this hay conveyor between locations. Cashmans keeps hay elevators in stock year round so you can pick one up or have it shipped whenever you need it.
