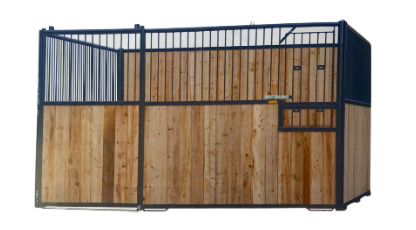

Behlen Stalls

Modular design gives ability for multiple configurations and setups inside your barn. These horse stalls can be mounted or stand on their own which makes them great for temporary or permanent use.

Dimensions

• Height: 84″
• Heavy 14 gauge, 2″ round tube framing
• Rods spaced 3″ apart

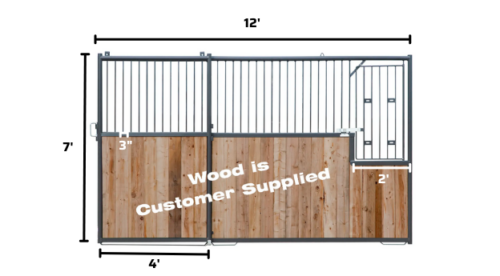

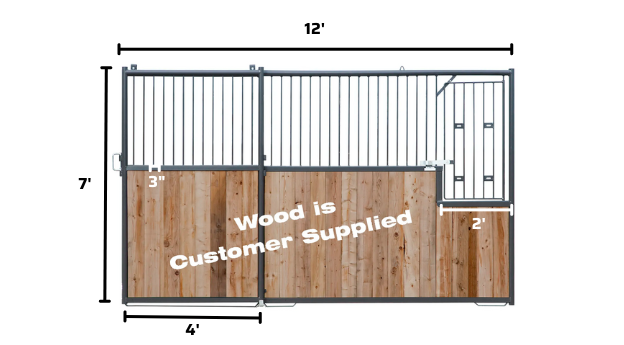

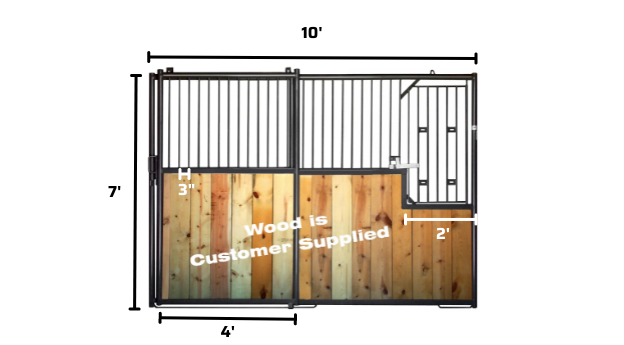

Fronts Include:

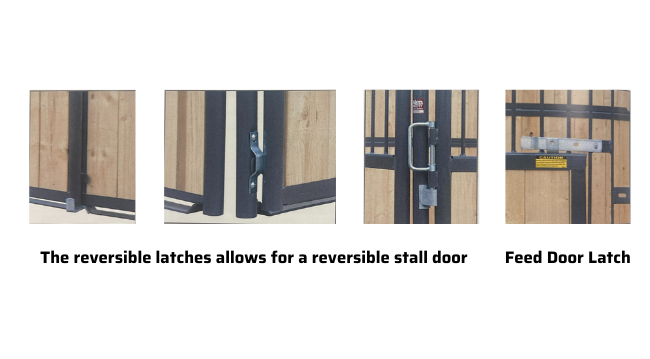

• 4′ left-hand rolling door
• 2′ feed door

Weights:

• 12′ Front – 218 lbs

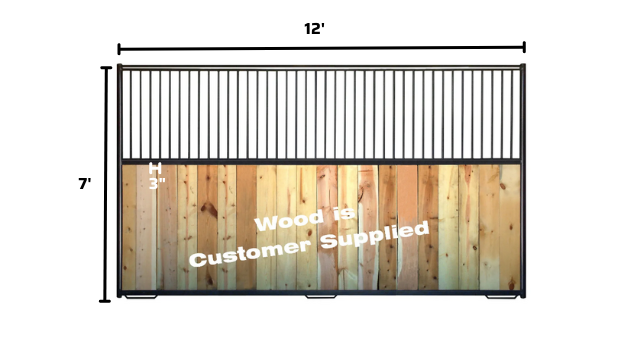

• 12′ Side w/ Bars – 169 lbs

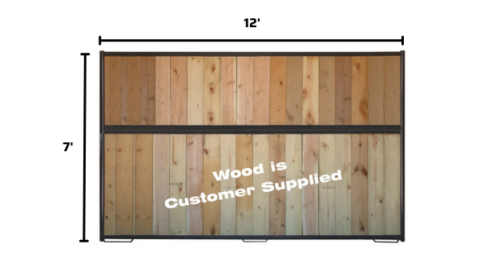

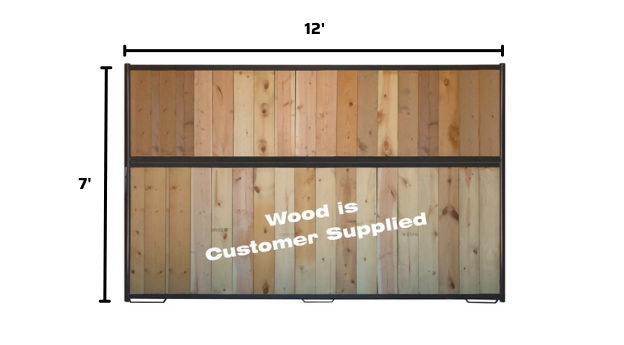

• 12′ Solid Side – 144 lbs
• 10′ Front – 198 lbs

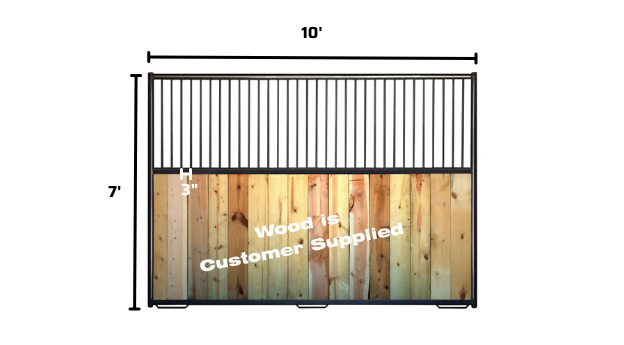

• 10′ Side w/ Bars – 144 lbs

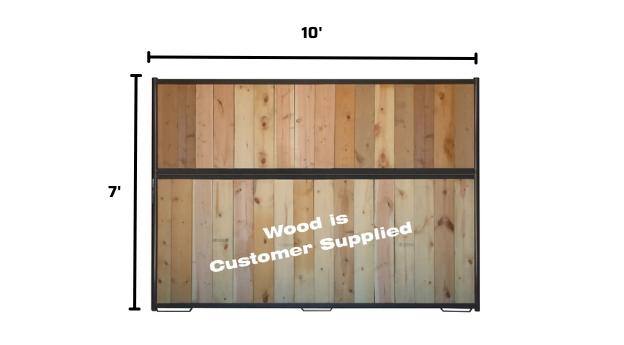

• 10′ Solid Side – 124 lbs

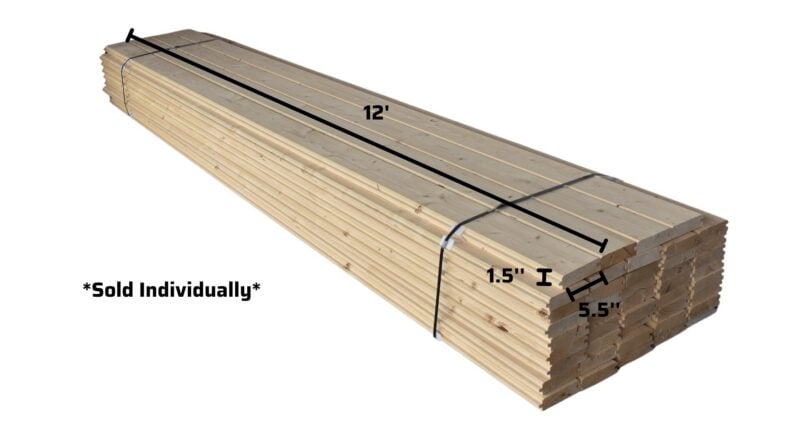

Using Recommended Lumber Ponderosa Pine 2″ x 6″ x 12′ tongue and groove boards:

• 10′ Front: 9 boards
• 10′ Bar Side: 9 boards
• 10′ Solid Side: 18 boards
• 12′ Front: 11 boards
• 12′ Bar Side: 11 boards
• 12′ Solid Side: 22 boards

Brackets: https://cashmans.com/product/behlen-stall-connectors
