Equestrian World Stall

These horse stalls can be mounted or stand on their own which makes them great for temporary or permanent use. Designed with safety in mind, our Equestrian World Horse Stall can be ordered as separate or complete units. These are standard with gray powder coat.

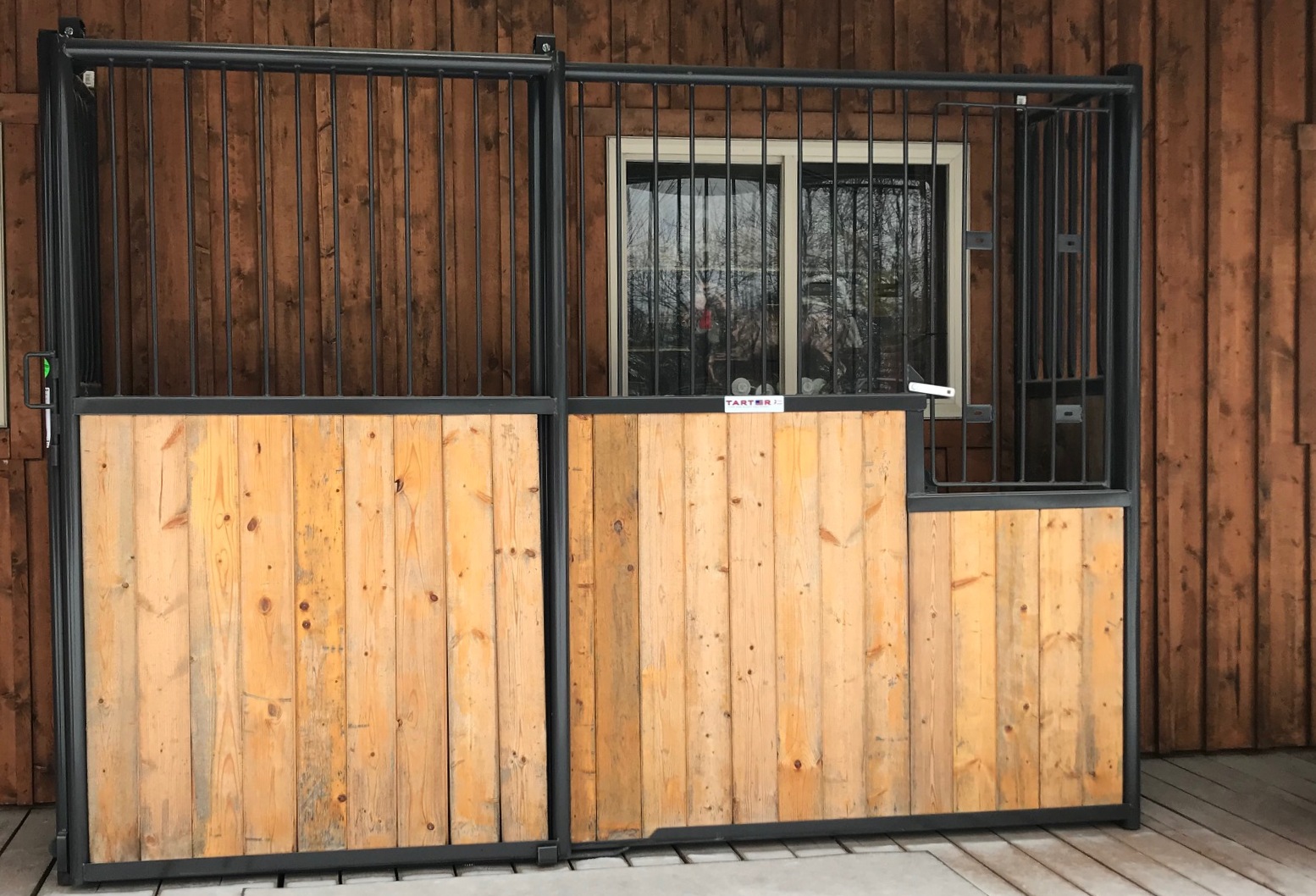

Fronts Include:

• 4′ wide sliding door

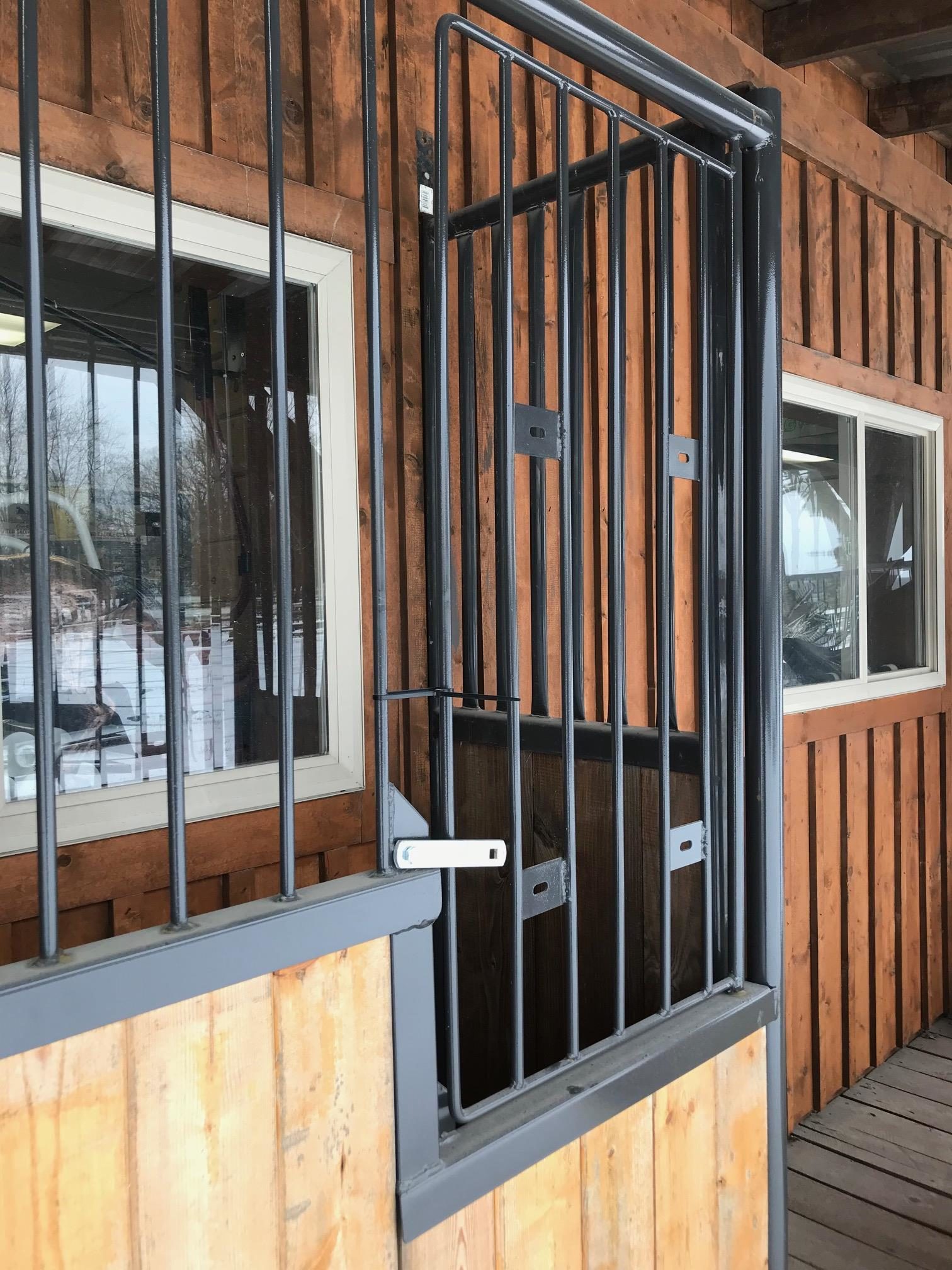

• Swing out feed door

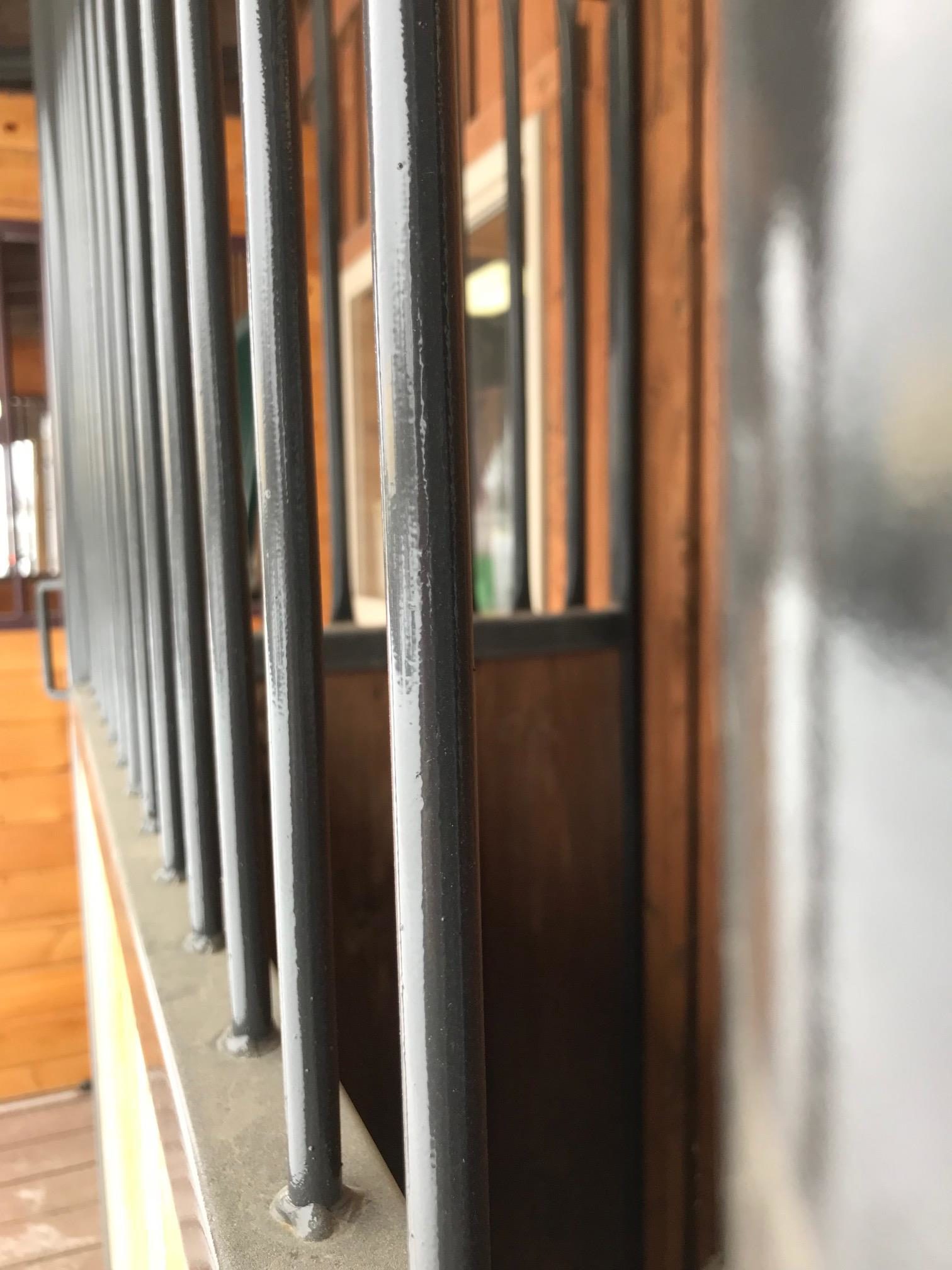

• 1/2″ solid steel bars that are spaced 3 1/2″ apart
• Flat doorway threshold to prevent stumbling

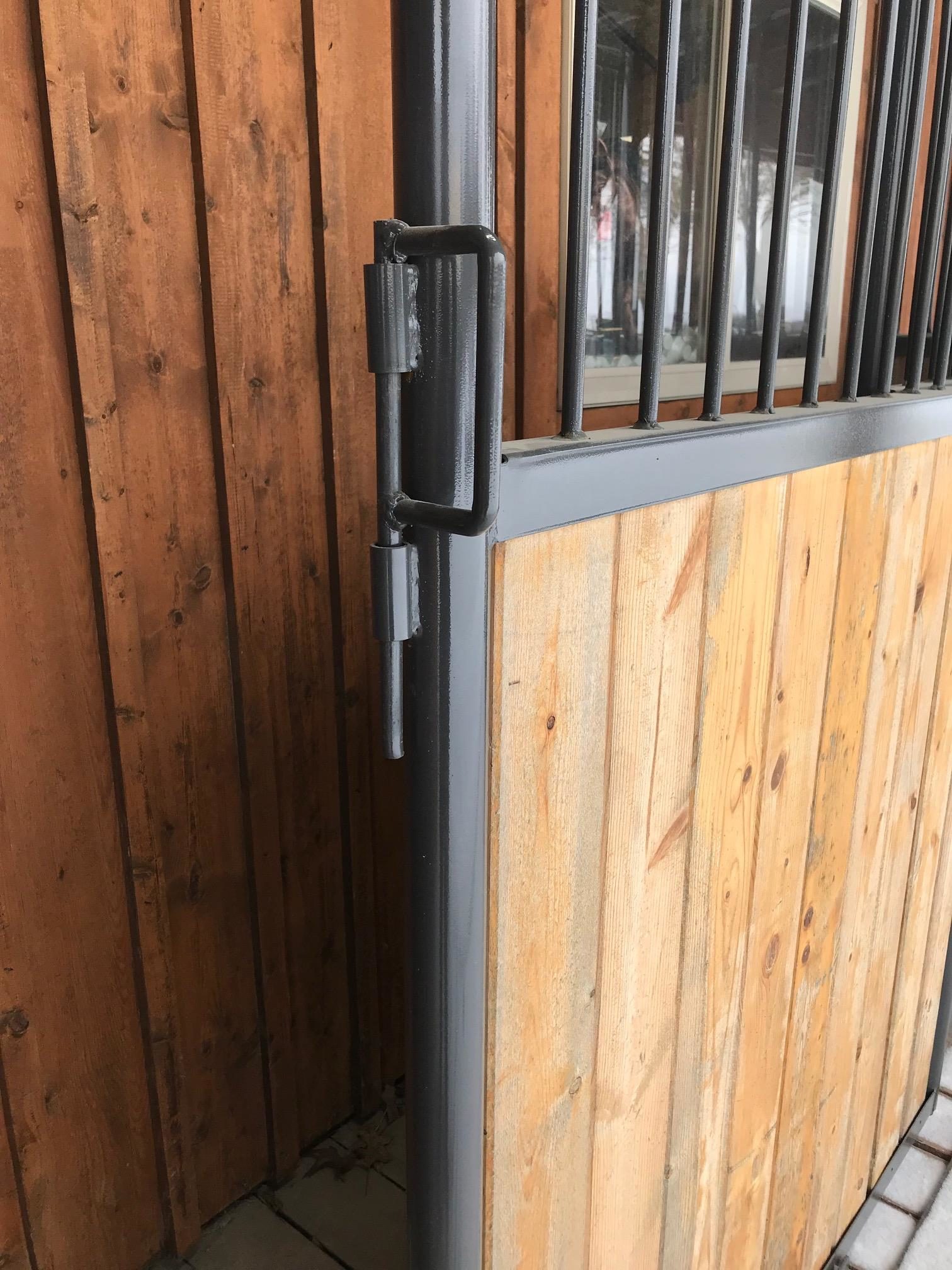

• Unique latches with no sharp protrusions

Actual Dimensions:

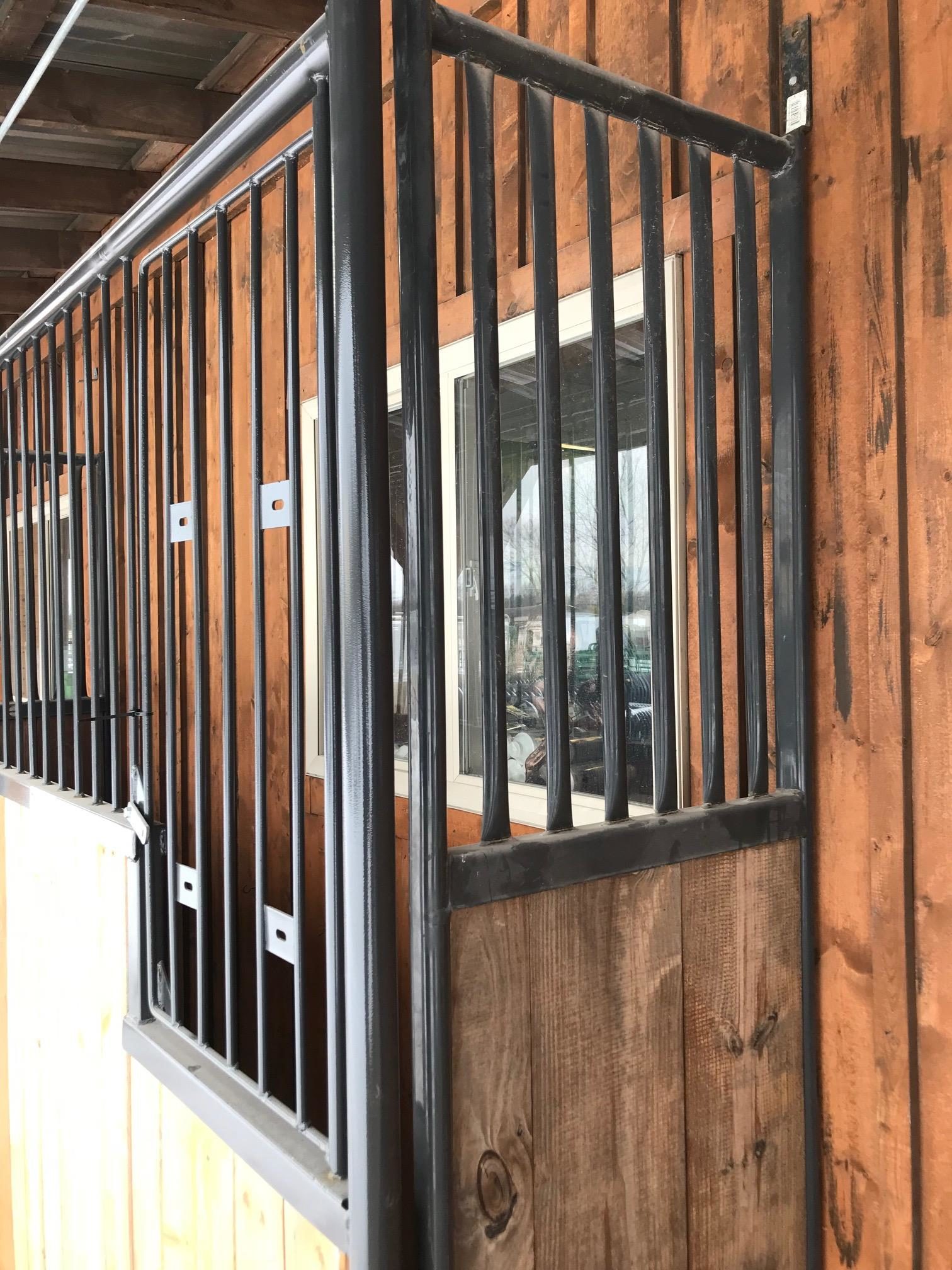

• 12′ Front/Sides – 144 1/2″ L
• 10′ Front/Sides – 117 5/8″ L
• Both Front/Sides – 7′ H

Weights:

• 12′ Front – 234 lbs
• 12′ Side w/ Bars – 141 lbs
• 12′ Solid Side – 159 lbs
• 10′ Front – 207 lbs
• 10′ Side w/ Bars – 121 lbs
• 10′ Solid Side – 145 lbs

Using Recommended Lumber Ponderosa Pine 2″ x 6″ x 12′ tongue and groove boards:

• 10′ Front: 9 boards
• 10′ Bar Side: 9 boards
• 10′ Solid Side: 18 boards
• 12′ Front: 11 boards
• 12′ Bar Side: 11 boards
• 12′ Solid Side: 22 boards

Brackets: https://cashmans.com/product/horse-stall-brackets/
